Thermometrics Infrared (IR) Sensors | ZTP-135BS

    Infrared (IR) Sensors

Thermometrics ZTP-135SR Infrared IR Sensor

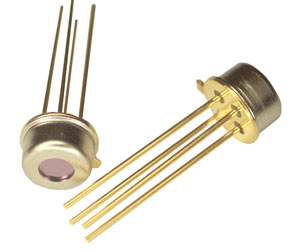

Thermometrics ZTP-135BS Infrared (IR) Sensors consist of thermo-elements, flat infrared filter and a thermistor for temperature compensation, all in a hermetically-sealed TO-46 (18) package. There are also a variety of filters available to help maximize performance in specific applications. Thermopile IR Sensors are used for non-contact, or infrared, surface temperature measuring.



Check Distributor Stock buy





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Industrial IR thermometer
  • Ear thermometers
  • Non-contact thermometers

Features

  • Small in size (TO-46 package)
  • Included ambient temperature (thermistor) sensor for compensation
  • Fast response time
  • Low cost
  • High sensitivity

Specifications

Thermopile Chip

Parameter Limit Min Limit Typ Limit Max Units Conditions
Chip Size   1.8 x 1.8   mm2
Diaphragm Size   1.4 x 1.4   mm2
Active Area   0.7 x 0.7   mm2
Internal Resistance 42 60 78 kΩ 25°C
Resistance T.C     0.12 %/°C
Responsivity 38 54 70 V/W 500K, 1 Hz
Responsivity T.C   -0.03   %/°C
Noise Voltage   32   nV rms R.M.S., 25°C
NEP   0.59   nW/Hz½ 500K, 1 Hz
Detectivity   1.18 E08   cmHz½/W 500K, 1 Hz
Time Constant   25   ms

Product Documents

English

Thermometrics Infrared (IR) Sensor | ZTP-135BS Datasheet

  • Download

English

Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

  • Download

Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download
