NTC Thermistors | Epoxy Type

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95

    Epoxy

Amphenol Thermometrics NTC Interchangeable Thermistors Type 95 Series

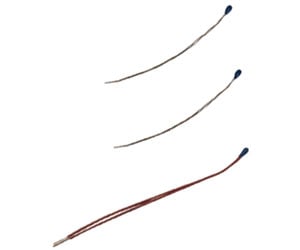

Thermometrics Type 95 of NTC Thermistors are epoxy-coated interchangeable NTC thermistor chips with bare tinned-copper, bare tinned-alloy or PTFE insulated lead wires. They are suitable for temperature measurement, control and compensation for use over a range of -112°F to 302°F (–80°C to 150°C) with interchangeability down to ±0.18°F (±0.1°C).







Check Distributor Stock



  • Applications
  • Features
  • DC 95
  • EC95
  • TK95
  • Product Documents
  • Part Nos.

Applications

  • Suitable for temperature measurement, control and compensation

Features

  • Precision, solid state temperature sensor
  • Interchangeability down to ±0.18°F (±0.1°C)
  • Suitable for use over a range of -112°F to 302°F (–80°C to 150°C)
  • High sensitivity, greater than –4%/°C at 77°F (25°C)
  • High reliability and stability over an interchangeable range
  • Most popular Resistance (R) vs Temperature (T) curves are available
  • Resin-coated for good mechanical strength and resistance to solvents
  • Rugged construction

DC 95

DC95 Specifications:
Epoxy-coated NTC interchangeable thermistor chips with bare tinned-copper lead wires
Diameter 0.012 in (0.3mm)
Dissipation Constant Still air: 1 mW/°C
Stirred oil: 8 mW/°C
Thermal Time Constant Still air: 10 seconds
Stirred oil: 1 second
Maximum Power at 77°F (25°C) 75 mW
De-rated From 100% at 77°F (25°C) to 0% at 212°F (100°C)
Options
  • Other resistance values in the range of 1000 Ω to 100 kΩ
  • Other tolerances or ranges
  • Alternative lead wires or lengths
  • Non-standard R vs T curves
  • Controlled dimensions
  • Special sensor assemblies or enclosures

EC95

EC95 Specifications:
Epoxy-coated NTC interchangeable thermistor chips with bare tinned 180 alloy lead wires
Diameter 0.008 in (0.2mm)
Dissipation Constant Still air: 1 mW/°C
Stirred oil: 8 mW/°C
Thermal Time Constant Still air: 10 seconds
Stirred oil: 1 second
Maximum Power at 77°F (25°C) 75 mW
De-rated From 100% at 77°F (25°C) to 0% at 212°F (100°C)
Options
  • Other resistance values in the range of 1000 Ω to 100 kΩ
  • Other tolerances or ranges
  • Alternative lead wires or lengths
  • Non-standard R vs T curves
  • Controlled dimensions
  • Special sensor assemblies or enclosures

TK95

TK95 Specifications:
Epoxy-coated interchangeable NTC thermistor chips with PTFE-insulated nickel lead wires. RoHS compliant.
Diameter 0.010 in (0.25mm)
Dissipation Constant Still air: 1 mW/°C
Stirred oil: 8 mW/°C
Thermal Time Constant Still air: 10 seconds
Stirred oil: 1 second
Maximum Power at 77°F (25°C) 75 mW
De-rated From 100% at 77°F (25°C) to 0% at 212°F (100°C)
Options
  • Other resistance values in the range of 1000 Ω to 100 kΩ
  • Other tolerances or ranges
  • Alternative lead wires or lengths
  • Non standard R vs T curves
  • Controlled dimensions
  • Special sensor assemblies or enclosures

Product Documents

English

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95 - Product Datasheet

  • Download

Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

  • Download

English

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 1) - Application Spotlight

  • Download

Thermometrics Application Spotlight | NTC Sensor Linearization

  • Download

Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

  • Download

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 2) - Application Spotlight

  • Download

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 3) - Application Spotlight

  • Download

Thermometrics Application Spotlight | Thermistors FAQ - Application Spotlight

  • Download

Thermometrics Product Spotlight | Digital Temperature Sensors versus NTC Thermistors - Product Spotlight

  • Download

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 5) - Application Spotlight

  • Download

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 4) - Application Spotlight

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

DC EC TK
DC95F202V EC95F232U TK95F202V
DC95F202W EC95F232V TK95F202W
DC95F202Z EC95F232W TK95F232V
DC95F232V EC95F232Z TK95F232W
DC95F232W EC95F302U TK95F302V
DC95F232Z EC95F302V TK95F302W
DC95F302V EC95F302W TK95F502V
DC95F302W EC95F302Z TK95F502W
DC95F302Z EC95F502U TK95F103V
DC95F502V EC95F502V TK95F103W
DC95F502W EC95F502W TK95F303V
DC95F502Z EC95F502Z TK95F303W
DC95F103V EC95F103U TK95G503V
DC95F103W EC95F103V TK95G503W
DC95F103Z EC95F103W TK95Y103V
DC95Y103V EC95F103Z TK95Y103W
DC95Y103W EC95Y103U TK95G104V
DC95Y103Z EC95Y103V TK95G104W
DC95H303V EC95Y103W
DC95H303W EC95Y103Z
DC95H303Z EC95H303U
DC95G503V EC95H303V
DC95G503W EC95H303W
DC95G503Z EC95H303Z
DC95Y104V EC95G503U
DC95Y104W EC95G503V
DC95Y104Z EC95G503W
DC95G104V EC95G503Z
DC95G104W EC95G104V
DC95G104Z EC95G104W
  EC95G104Z
