P122 High Silicon Pressure Sensor Die

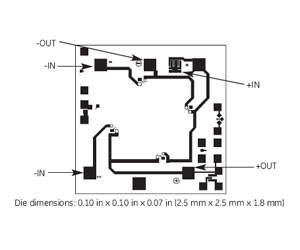

General	Value	Units	Notes
Pressure Range	1700	KPaG	247 psi (17 bar)
	3500	KPaA	508 psi (35 bar)
	7000	KPaA	1015 psi (70 bar)
	17200	KPaA	2495 psi (172 bar)
	35000	KPaA	5076 psi (350 bar)
	21000	KPaA	3046 psi (210 bar)
Maximum Overpressure	2X		Rated Pressure
Operating Temperature Range	-40 to 257	°F	(-40°C to 125°C)
Storage Temperature Range (Undiced)	-67 to 302	°F	(-55°C to 150°C)
Weight	0.00008	lb	(0.04 g)
Media Compatibility	Clean dry air, non-corrosive gases

Electrical @ 25°C (77°F) unless otherwise stated	Value	Units	Notes
Excitation	1.0	mA	10 VDC Max
Input Impedance	5000 ±20%	Ω
Output Impedance	5000 ±20%	Ω

Performance Parameters (1)	Value (5)	Units	Notes
Zero Offset	±50	mV	1
Full Scale Output (FSO)	240 ±35	mV	6, 7
Linearity	±0.25	%FSO	2, 7
Pressure Hysteresis	±0.05	%FSO	7
Temperature Coefficient of Zero	±30	µV/V/°C	3, 7
Temperature Coefficient of Resistance	0.27	% /°C	3, 7
Temperature Coefficient of Sensitivity	-0.19	%/°C	3, 7
Thermal Hysteresis of Zero	0.2	%FSO	4, 7
Long Term Stability of FSO	0.2	%FSO	4
0 KPaA for absolute sensors, 0 KPaG for differential or gage sensors. Best fit straight line. Between 32°F and 158°F (0°C and 70°C). Typical value over one year. All values measured a 77°F (25°C) and 1 mA excitation, unless otherwise noted. 133 ± 33 mV for 51009 and 51013

NovaSensor P122
