NovaSensor NPH Series | Solid State Medium Pressure Sensors

    Pressure Sensors

Nova Sensor NPH Series of Solid State Medium Pressure Sensors

An integrated circuit silicon sensor is housed in a standard TO-8 electrical package that is printed circuit board mountable. The latest techniques in micromachining have been used to ion-implant piezoresistive strain gauges into a Wheatstone bridge configuration that is integrally formed on a micromachined silicon diaphragm. As with the all NovaSensor silicon sensors, the NPH Series employees SenStable processing technology, providing excellent output stability. Constant current excitation to the sensor produces a voltage output that is linearly proportional to the input pressure.

The user can provide standard signal conditioning circuitry to amplify the 100 mV output signal. The sensor is compatible with most non-corrosive gases and dry air. A laser-trimmed, thick-film resistor network on a hybrid ceramic substrate provides temperature compensation.



Check Distributor Stock





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Process control, P-to-I converters
  • Pneumatic control systems
  • HVAC controls
  • Biomedical: Infusion pumps, sphygmomanometers, respirators
  • Aerospace: Altimeters, barometers, cabin pressure sensors
  • Computer peripherals
  •

    Features

    • Solid state, high reliability
    • Standard TO-8 package suitable for PC board mount
    • Low cost, small size
    • Available in gauge, absolute, and differential pressure versions
    • Media compatible with non-corrosive gases and dry air
    • Typical FSO 100 mV @ 1.5 mA
    • Thermal accuracy FSO 0.4% typical
    • Overpressure capability to five times maximum rated pressure
    • Three standard ranges: 15, 30 and 100 psi (1, 2 and 7 bar)
    • Nonlinearity 0.05% FSO typical
    • Standard 3/16 in OD pressure port
    • Ceramic substrate with temperature compensation resistors

    Specifications

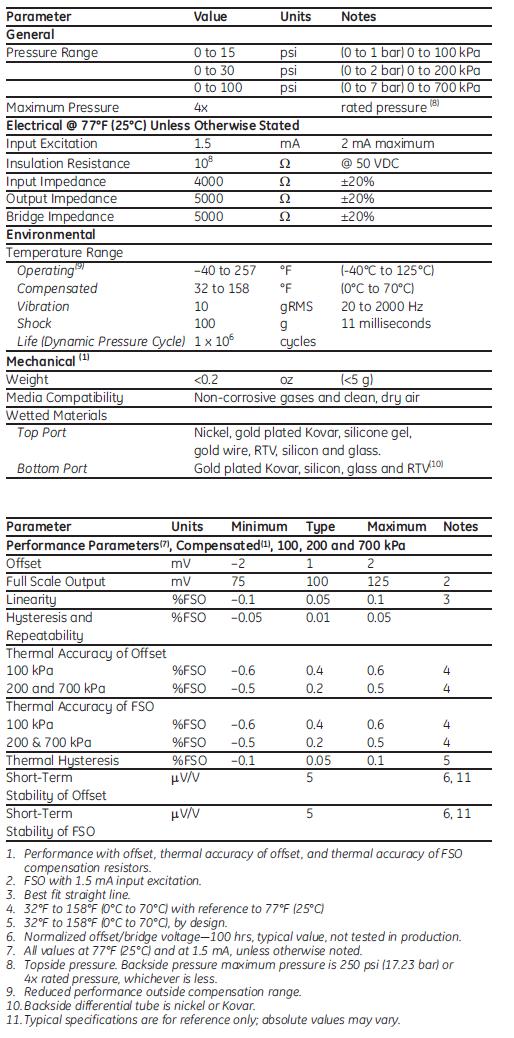

    NPH-med-Specs-Tb1

    Product Documents

    English

    NovaSensor NPH | Medium Pressure Sensor - Datasheet

    • Download

    NovaSensor Application Spotlight | MEMS Pressure Sensor Solutions for Industrial Applications - Application Spotlight

    • Download

    English

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    Part Number Description
    NPH-8-100-A-H TO-8 package configuration, Range: 100kPa; 15 psi , Absolute
    NPH-8-100-G-H TO-8 package configuration, Range: 100kPa; 15 psi, Gauge
    NPH-8-100-D-H TO-8 package configuration, Range: 100kPa; 15 psi, Differential
    NPH-8-200-A-H TO-8 package configuration, Range: 200kPa; 15 psi, Absolute
    NPH-8-200-G-H TO-8 package configuration, Range: 200kPa; 15 psi, Gauge
    NPH-8-200-D-H TO-8 package configuration, Range: 200kPa; 15 psi, Differential
    NPH-8-700-A-H TO-8 package configuration, Range: 700kPa; 15 psi, Absolute
    NPH-8-700-G-H TO-8 package configuration, Range: 700kPa; 15 psi, Gauge
    NPH-8-700-D-H TO-8 package configuration, Range: 700kPa; 15 psi, Differential
