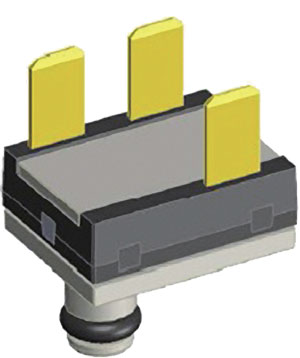

The NovaSensor NPR-101 Harsh Media Pressure Sensor is a silicon-based MEMS device using “Backside Absolute Pressure” technology designed for harsh media exposure, which eliminates the direct contact of the sensing circuitry with the applied media. The device is coupled with an ASIC to provide a ratiometric output proportional to the applied pressure. Integrated diagnostics included.
Transmission fluid pressure sensing
Oil pressure sensing
Fuel pressure sensing
Harsh media compatibility
High level output
Small package
Performance Parameters
Value
Operating Pressure Range
300 PSIA Full Scale Pressure (20.68 BarA)
Total Error Band
±2.0% FP (-20°C to 100°C) ±3.0% FP (100°C to 140°C)
