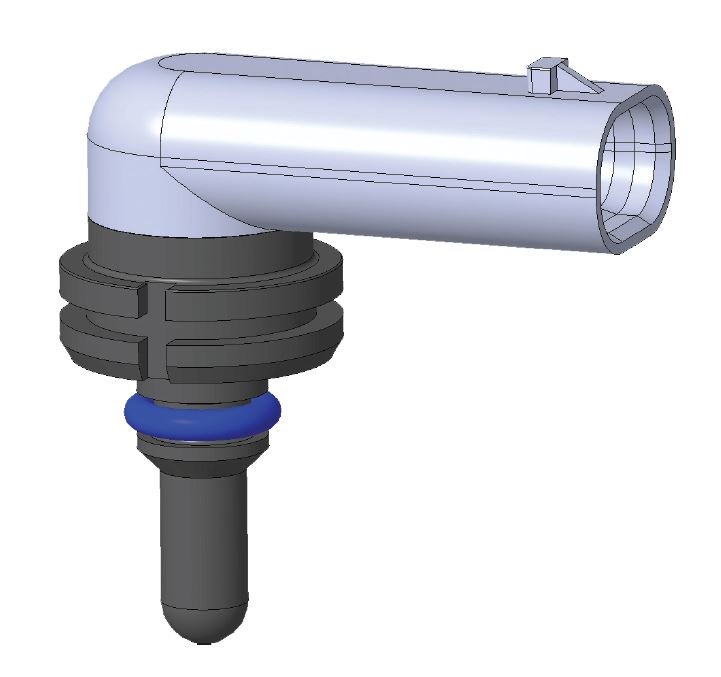

Right Angle Fluid Temperature Sensor
Thermometrics Right Angle Fluid Temperature Sensors measure and monitor the temperature of a variety of fluids. The right angle design of this sensor makes it ideal for compact spaces, and the incorporation of the spring clip provides a quick means for both installation and removal.
Features
- Operating Temperature: -40°C ~ 125°C
- USCAR 1.2mm sealed connection system
- High accuracy and long-term stability
- Right angle design for compact space applications
- Field-proven spring clip design
- Alternate RvT curves available upon request
- RoHS Compliant
Applications
- Battery Coolant Temperature
- Engine Coolant Temperature
- Outside Air Temperature
- Industrial Temperature Monitor
Ordering Information
Part No. | Resistance @ 25°C |
CTTS-302839-F02 | 10KΩ±1.5% |
