NPR-40X | Product Spotlight


Pressure & Temperature Sensor Subassembly

The NovaSensor NPR-40X Series of Pressure & Temperature Sensors is designed to provide a cost effective solution for applications that require measurement of backside absolute pressure in aggressive media that cannot touch other electronics in the system. The series was designed to easily integrate with a metal housing using a crimping process, or it can be attached to a printed circuit board (PCB). NPR-40X is currently available in three different ceramic port options.

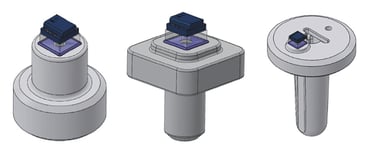

novasensor npr-40x product drawings



Based on NovaSensor’s advanced SenStable® piezoresistive sensing technology, NPR-40X employs the backside absolute pressure technology of the NovaSensor PT1907, which is very popular in automotive and process control applications.


Because it comes into direct contact with the media, the sensor is more accurately calibrated, allowing the NPR-40X Series to provide superior pressure and temperature readings. Additionally, NPR-40X is available in pressure ranges from 0 psi to 60 psi (0 bar to 4.137 bar) through 0 psi to 300 psi (0 bar to 20.68 bar). Please contact NovaSensor for other pressure ranges.

novasensor npr-40x app image collage



Features:

  • Harsh media compatibility
  • Highly reliable, solid state silicon pressure sensor die subassembly pressurized from backside (cavity)
  • Variety of pressure ranges and types available
  • Temperature Range: -40°C to 150°C
  • On-chip temperature sensor
  • Easy integration into metal housing or PCBA attachment
  • Three ceramic button options available; customized ceramic options available upon request

Applications:

  • Pressure and Temperature Measurement in Aggressive Media
  • Engine Oil
  • Transmission Fluid
  • HVAC
  • Industrial Automation
  • Process Control Systems

Amphenol NovaSensor is a leading innovator in advanced sensing technologies and embedded measurement solutions customized for a wide range of applications to provide critical information for real time decisions. We offer industry-leading application expertise, rapid customization and world-class manufacturing capability to deliver the greatest value to our customers.
