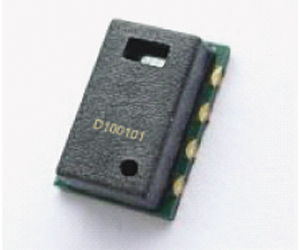

Telaire ChipCap 2 | Humidity and Temperature Sensor

    Humidity Sensors

Telaire ChipCap2  Humidity & Temperature Sensor System

The Telaire ChipCap 2 offers the most advanced and cost effective humidity and temperature sensing solution for virtually any type of application. A capacitive polymer sensor chip and a CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solderable SMD package.

Individually calibrated and tested, ChipCap 2 performs at ±2% from 20% to 80% RH (±3% over entire humidity range), and is simple and ready to use without further calibration or temperature compensation.

ChipCap 2 provides linear output signals in various interfaces to customer requirements:

  • I²C interface
  • PDM convertible to analog signal
  • Alarm function for preset control at min/max humidity



Check Distributor Stock buy



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Energy Saving HVAC Control —Air Conditioning, Refrigeration, Indoor Air Quality, Vent Fans, Home Appliances, Humi/Dehumidifiers
  • Process Control & Instrumentation—Medical Instruments, Handheld Devices, Weather Stations, Food Processing, Printers, RFIDs
  • Automobile & Transportation—Cabin Climate Control, Defogging Control Condensing Preventive Device
  • Medical — Nebulizers, Oxygen air, CPAP/Sleep Apnea devices
  • OEM assemblies available

Features

  • Fully Calibrated and Temperature Compensated
  • Digital or Analog Output with Alarm Function
  • Precision & Accuracy (±2%RH, ±0.3°C, 14 bit )
  • Free Operating Voltage (min 2.7V to max 5.5V)
  • Low Current Consumption
  • SMD Package for Automated Assembly
  • Reliable in Harsh Environments

Specifications

Sensor Performance:
Relative Humidity RH(%)
Resolution 14 bit (0.01 %RH)
Accuracy1 ±2.0 %RH (20~80 %RH) 2
Repeatability ±0.2 %RH
Hysteresis ±1.0 %RH
Linearity <2.0 %RH
Response time3 4.0 sec
Temp Coefficient 0.05%RH/C @ 50%RH (at 10-60°C)
0.15%RH/C @ 90%RH (at 10-60°C)
Operating Range 0 ~ 100 %RH (Non-Condensing)
Long Term Drift <0.5 %RH/yr (normal condition)
  1. Custom Accuracy Tolerance Available
  2. Accuracies measured at 25°C, 5.0V
  3. Measured at 25°C, 1m/sec airflow for achieving 63% of step from 33%RH to 90%RH



Sensor Performance:
Temperature (°C)
Resolution 14 bit (0.01°C)
Accuracy1 ±0.3°C
Repeatability ±0.1°C
Response time2 5.0 sec (63%)
Operating Range -40 to 125°C
Long Term Drift <0.5°C/yr (normal condition)
  1. Accuracies measured at 25°C, 5.0V
  2. Min 5.0 sec, Max 20 sec
