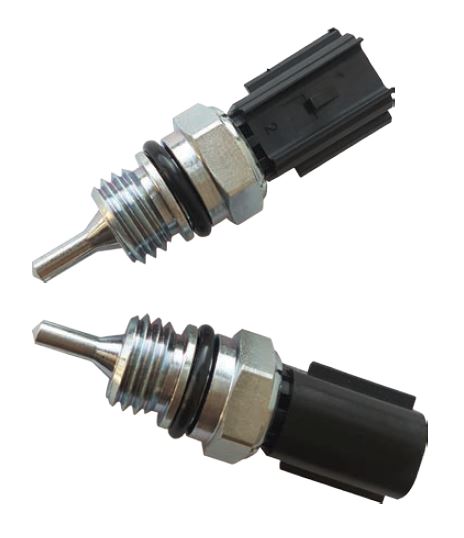

WTF083B001 Coolant Temperature Sensor (CTS)
Thermometrics Coolant Temperature Sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module of EV/PHEVs. If the battery module starts to overheat, the Coolant Temperature Sensor relays a signal to the Battery Management System (BMS). The BMS uses this information to prevent battery packs from any damage and maximize the performance.

- IP67 rated package
- Compact IP67 design with integrated connector
- Customizable to meet application installation needs
- Variety of RvT curves and terminal plating available
- Operating temperatures to 100°C
- Fast response proven design
Operating Temperature
-40°C to 100°C
Storage Temperature
-40°C to 125°C
R @ 110°C
2828 KΩ ± 1.3%
Response Time
5 seconds from 25°C to 85°C in water
Temperature Accuracy
R@25°C ±0.3°C
Housing Material
PBT-GF15 Connector with 14mm Hex
Machined 12L14 Steel, Zinc with trivalent
chromium
Beta (25/85)° C
3975K ±0.75%
Connector
USCAR 064 Sealed (IP67)
Mating Connector
USCAR 3140x-2110
R vs. T | |||||
Temp (°C) | Resistance (Ω) | Resistance Accuracy | Temperature Accuracy | ||
-% | +% | +°C | -°C | ||
-40 | 94331 | -3.9 | 4.0 | 0.58 | -0.61 |
-35 | 68175 | -3.6 | 3.7 | 0.57 | -0.59 |
-30 | 49796 | -3.4 | 3.5 | 0.55 | -0.57 |
-25 | 36743 | -3.2 | 3.3 | 0.53 | -0.55 |
-20 | 27377 | -3.0 | 3.0 | 0.51 | -0.52 |
-15 | 20590 | -2.8 | 2.8 | 0.49 | -0.50 |
-10 | 15626 | -2.6 | 2.6 | 0.47 | -0.48 |
-5 | 11960 | -2.4 | 2.4 | 0.45 | -0.46 |
0 | 9231 | -2.2 | 2.2 | 0.43 | -0.43 |
5 | 7180 | -2.0 | 2.0 | 0.40 | -0.41 |
10 | 5628 | -1.8 | 1.8 | 0.38 | -0.38 |
15 | 4444 | -1.6 | 1.6 | 0.35 | -0.35 |
20 | 3533 | -1.5 | 1.5 | 0.32 | -0.33 |
25 | 2828 | -1.3 | 1.3 | 0.30 | -0.30 |
30 | 2278 | -1.5 | 1.5 | 0.34 | -0.34 |
35 | 1847 | -1.6 | 1.6 | 0.39 | -0.39 |
40 | 1506 | -1.8 | 1.8 | 0.44 | -0.44 |
45 | 1235 | -1.9 | 1.9 | 0.49 | -0.49 |
50 | 1018 | -2.1 | 2.1 | 0.54 | -0.55 |
55 | 844 | -2.2 | 2.2 | 0.59 | -0.60 |
60 | 703 | -2.3 | 2.4 | 0.65 | -0.66 |
65 | 589 | -2.5 | 2.5 | 0.70 | -0.71 |
70 | 495 | -2.6 | 2.6 | 0.76 | -0.77 |
75 | 418 | -2.7 | 2.8 | 0.81 | -0.83 |
80 | 355 | -2.8 | 2.9 | 0.87 | -0.89 |
85 | 303 | -2.9 | 3.0 | 0.93 | -0.95 |
90 | 259 | -3.1 | 3.1 | 0.99 | -1.02 |
95 | 222 | -3.2 | 3.3 | 1.05 | -1.08 |
100 | 192 | -3.3 | 3.4 | 1.12 | -1.15 |
