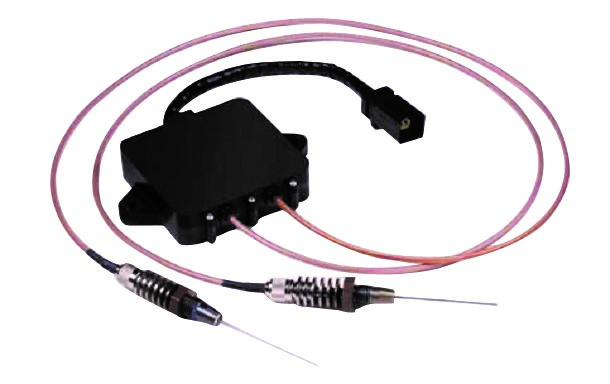

Thermometrics Accusolve Diesel Particulate Filter (DPF) Soot Sensor utilizes radio frequency technology to enable accurate measurement of accumulated soot in the DPF, providing real-time soot loading data and real time closed loop control of the DPF regeneration process. Accurate measurement of the soot load allows for the optimization and reduction of regeneration cycles of the DPF. This in turn allows for improved fuel economy and improved filter life for active and passive regeneration systems.
Applications
- Provide closed loop control of any filter system where pollutants absorb RF energy
- On-and Off-road Diesel Particulate Filter (DPF) Soot Sensing
- Industrial heavy-duty stationary diesel DPF applications
- Marine diesel DPF
- Rail diesel DPF
- LD truck and Passenger Car diesel engines DPF
Features
-
Accurately and continuously measures soot loading (g/L) within a diesel particulate filter (DPF) and through filter specific algorithms providing a (g/L) reading so the OEM can maintain closed loop control of the DPF regeneration process
-
System cost reductions available due to reduced DPF size and type of materials used
-
Allows multiple regeneration strategies
-
Enables accurate reading of partial regeneration
-
Factory calibration of the sensor via CAN prior to shipment
-
The sensor electronics enclosure dimension is 100 mm x 150 mm x 30 mm.
-
4 sensor configurations available include coaxial cable lengths of 1.0 m, 1.5 m, 2.5 m and 3.0 m.
Specifications
| Operating Voltage | 12VDC or 24VDC |
| Power Consumption | Max 20W |
| Communication Protocol | CAN. Serial, RS-232 communication of measured data is also available as an output along with CAN messages. |
| Operating Frequency Range | 2.1 - 2.2 GHz |
| Accuracy | ± 0.5 g/L as currently configured for DPF Soot Loading, depending on algorithm accuracy. |
| Sensor Output | Standard J1939-71 |
| Start-Up Time | 10 seconds of power-up |
| Response Time | Max 10 seconds |
| Connector | Tyco 6-pin Ampseal 16 style (Various keyways available.) |
| Weight | 900 grams (sensor enclosure and coaxial cable assembly) |
Temperature Capability:
|
Component |
Minimum (°C) |
Typical (°C) |
Maximum (°C) |
| Soot sensor storage temperature | -50 | 30 | 125 |
| Soot sensor enclosure operating temperature | -40 | 85 | |
| Antenna element operating temperature | -40 | 600 | 900 |
| Antenna connector operating temperature | -40 | 200 | |
| Coaxial cable temperature | -40 | 200 |
