Thermometrics Sensor Assemblies | A-1931 Evaporator Core Temperature Sensor

    Temperature Sensor Assemblies

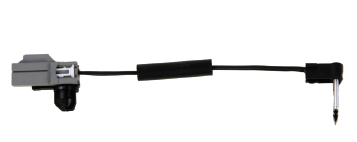

Thermometrics Evaporator Core Temperature Sensor

Thermometrics Evaporator Core Temperature Sensor measures evaporator core temperature in a vehicle's HVAC system so that it doesn’t freeze over, preventing a costly repair. The ultra fast response time aids in the HVAC system efficiency by enabling the evaporator core to operate closer to 0°C without the risk of a freeze over condition.





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Automotive HVAC systems
  • Surface temperature measurement of evaporator core

Features

  • Existing field-proven design
  • Probe construction protects the thermistor from moisture
  • Fast response time using geometry and materials optimized for maximum heat transfer
  • Small size & flexible packaging facilitates installation & service
  • Snap-fit housing eliminates wiring insulation damage and provides strain relief
  • Long-term stability – proprietary silver migration controls
  • Salt fog resistant
  • Alternate RvT curves available
  • Different geometries to meet package requirements available

Specifications

R @ 77°C 3000 ± 1% Ω
B (25/85)°C 3943
Operating Temperature Range -40°C to 120°C
Storage Temperature -40°C to 150°C
Temperature Accuracy ±1.40°C at 0°C
Response Time Less than 4 seconds from 0°C water to 10°C water
Resistance vs. Temperature Data See datasheet.

Product Documents

English

Thermometrics Evaporator Core Temperature Sensor Datasheet

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

A-1931
