Thermometrics Sensor Assemblies | JS8746 Harsh Environment Temperature Sensor

    Temperature Sensor Assemblies

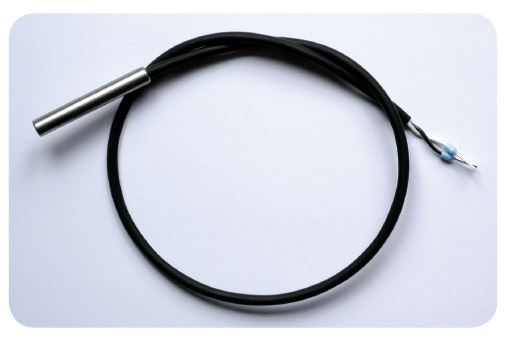

Thermometrics Harsh Environment Temperature Sensor JS8746

new

Thermometrics JS8746 Harsh Environment Temperature Sensor has been designed to address all aspects of temperature measurement for HVAC control systems in the container-ship market, in addition to industrial applications, such as compresors, condensing units, heat pumps, air conditioning. Employing materials and build standards that enhance the sensor’s ability to withstand water ingression and degradation by the marine environment, the sensor meets statutory requirements for temperature measurement and performance expectations.



Check Distributor Stock



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Marine container ship applications
  • Compressors
  • Condensing units
  • Heat pumps
  • Air conditioning
  • Refrigerated truck and trailer
  • Reefer containers

Features

  • HACT Exposure: +14 days
  • Temp Tolerance Rating: ±0.2°C and ±0.15°C
  • Temp Rating: -40°C to 120°C
  • Environmental Protection: IP68
  • Resistant to: Salt solutions, Ozone, UV and a variety of marine environment cleaning detergents
  • Inert to trace levels of airborne R134a refrigerant
  • Stainless steel hard shell, with class corrosion resistance A2 or better according to ISO3506
  • Double-insulated cable, multicore copper conductors and tin-coated, conductors cross-sectional area 0.25 mm2 (23 AWG) min, configured as 19mm x 0.14mm
  • Crimp caps, tin-coated brass, with integral strain relief for the conductor

Specifications

Resistance at 25°C 10,000 Ω
Thermal Equilibrium Temperature Tolerance ±0.2ºC or ±0.15ºC±0.2ºC or ±0.15ºC
(Temperature Range: 0ºC to 70ºC)
B25/85 3977k nominal
Withstand Voltage 2.5kV rms for minimum of 1 minute, where a broadly sinusoidal wave-form at 50 Hz is applied between thestainless steel housing and the conductors of the cable. A failure is recorded if the current exceeds 1mA.
Temperature Range -40°C to 125°C
Time Constant 20 seconds or less to register 63% of a known temperature transient
Housing Stainless steel hard shell, with class corrosion resistance A2 or better according to ISO3506
Cable Double-insulated, multicore copper conductors and tin-coated conductors cross-sectional area 0.25 mm2 (23 AWG) min, configured as 19mm x 0.14mm
Crimp Caps Tin-coated brass with integral strain relief for the conductor

Product Documents

English

Thermometrics JS8746 | Harsh Environment Temperature Sensor - Product Datasheet

  • Download

Thermometrics Product Spotlight | Harsh Environment Temperature Sensor - JS8746 - Product Spotlight

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

  • JS8746A-0.20
  • JS8746B-0.20
  • JS8746C-0.20
  • JS8746A-0.15
  • JS8746B-0.15
  • JS8746C-0.15
