Thermometrics Sensor Assemblies

GE-2142 HVAC Duct Temperature Sensor

Thermometrics GE-2142 HVAC Duct Temperature Sensors are OEM solutions for measuring the temperature of air in ventilation ducts. These sensors provide a signal output that is proportional to the duct air temperature. This signal can be used as an input to a controller that interprets the signal and adjusts outputs accordingly.

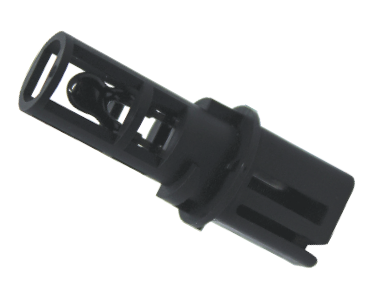

Thermometrics_HVAC_Duct_Temperature_Sensor_A-2142

Automotive Applications:

HVAC Vent Temperature
In-cabin Temperature

Industrial Applications:

Air Temperature
HVAC Airflow Monitoring
Industrial Automation – Ambient environment and process monitoring.

Lead frame construction for a robust crimpless conductive path from the terminals to the NTC
High accuracy
High sensitivity and reliability
Rugged thermoplastic housing
Twist-and-lock installation
Open element design for fast time response

Resistance at 25°C (77°F)	2,795 Ω (±2.50%)
Beta (25/85) °C	4073
Operating Temperature	-40° to 135°C (-40°F to 275°F)
Storage Temperature	-40° to 135°C (-40°F to 275°F)
Response Time	<5 seconds (in oil)
Weight	2.4 grams
Plastic	Nylon 6/6
Connection System	Aptiv (Delphi) Metri-Pack 150 Unsealed
Mating Connector	P/N: 12047662
