Thermometrics Current Limiters | A-2130 NTC Inrush Current Limiter Kit

    Current Limiters

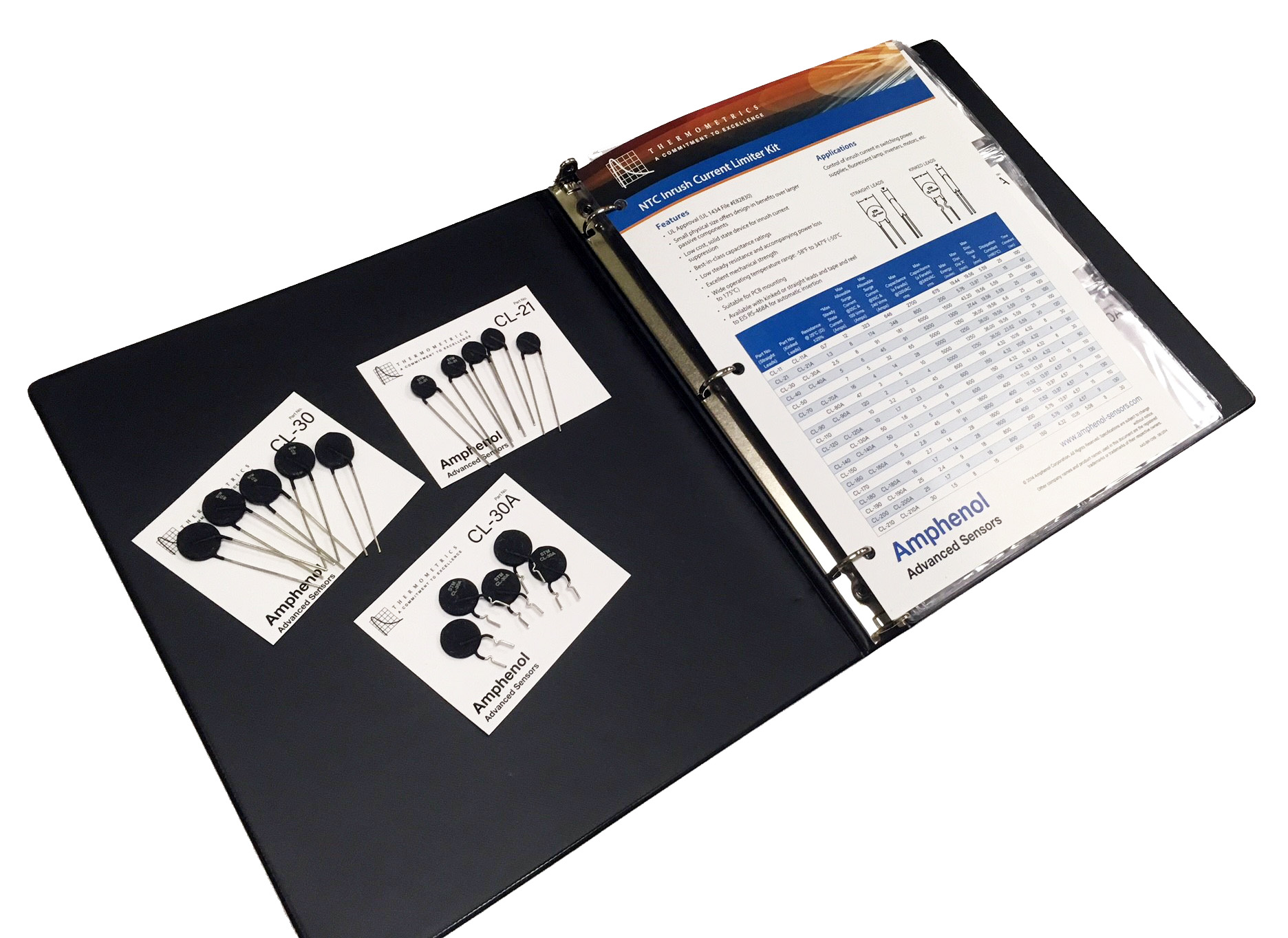

Thermometrics NTC Inrush Current Limiter Thermistors Kit A-2130

Thermometrics A-2130 Inrush Current Limiter Kit consists of 32 our most popular styles of Inrush Current Limiters (straight and kinked leads) at a quantity of 5 pieces per style. This kit allows customers, in their initial design stage, to test multiple spec variances to determine which part(s) are best suited for their needs. This added efficiency enables the customer to reduce lead times and delivery of multiple parts. It also provides a better customer experience overall.

Kit Includes:

  • Table of Contents, including specs along with features and applications
  • 32 different inrush current limiters (straight and kinked leads); 5 pcs each



Check Distributor Stock





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Control of inrush current in switching power supplies, fluorescent lamp, inverters, motors, etc.

Features

  • UL Approval (UL 1434 File #E82830)
  • Small physical size offers design-in benefits over larger passive components
  • Low cost, solid state device for inrush current suppression
  • Best-in-class capacitance ratings
  • Low steady resistance and accompanying power loss
  • Excellent mechanical strength
  • Wide operating temperature range: -58°F to 347°F (-50°C to 175°C)
  • Suitable for PCB mounting
  • Available with kinked or straight leads and tape and reel to EIS RS-468A for automatic insertion

Specifications

Part No.
(Straight Leads)
Part No.
(Kinked Leads)
Resistance @ 25°C (Ω) ±25% *Max Steady State Current (Amps) Max Capacitance (u Farads)
@120VAC rms
Max Capacitance (u Farads)
@240VAC rms
Max Energy
(Joules)
CL-11 CL-11A 0.7 12 2700 675 19.44
CL-21 CL-21A 1.3 8 800 200 5.76
CL-30 CL-30A 2.5 8 6000 1500 43.20
CL-40 CL-40A 5 6 5200 1300 37.44
CL-50   7 5 5000 1250 36.00
CL-70 CL-70A 16 4 5000 1250 36.00
  CL-80A 47 3 5000 1250 36.00
CL-90 CL-90A 120 2 5000 1250 36.00
CL-110   10 3.2 600 150 4.32
CL-120 CL-120A 10 1.7 600 150 4.32
  CL-130A 50 1.6 600 150 4.32
CL-140 CL-140A 50 1.1 600 150 4.32
CL-150   5 4.7 1600 400 11.52
CL-160 CL-160A 5 2.8 1600 400 11.52
CL-170   16 2.7 1600 400 11.52
CL-180 CL-180A 16 1.7 1600 400 11.52
CL-190 CL-190A 25 2.4 800 200 5.76
CL-200 CL-200A 25 1.7 800 200 5.76
CL-210 CL-210A 30 1.5 600 150 4.32

Product Documents

English

Thermometrics Current Limiters | NTC Inrush Kit Table of Contents

  • Download

Thermometrics Application Spotlight | Inrush Current Limiting

  • Download

English

Thermometrics Application Spotlight | Inrush Current Limiting

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

  • CL-11
  • CL-11A
  • CL-21
  • CL-21A
  • CL-30
  • CL-30A
  • CL-40
  • CL-40A
  • CL-50
  • CL-70
  • CL-70A
  • CL-80A
  • CL-90
  • CL-90A
  • CL-110
  • CL-120
  • CL-120A
  • CL-130A
  • CL-140
  • CL-140A
  • CL-150
  • CL-160
  • CL-160A
  • CL-170
  • CL-180
  • CL-180A
  • CL-190
  • CL-190A
  • CL-200
  • CL-200A
  • CL-210
  • CL-210A
