Thermometrics Infrared (IR) Sensors | ZTP-315

    Infrared (IR) Sensors

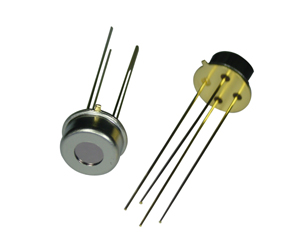

Thermometrics Thermopile Infrared (IR) Sensor ZTP-135LThermometrics ZTP-315 Infrared (IR) Sensors consist of thermo-elements, flat infrared filter and a thermistor for temperature compensation, all in a hermetically-sealed TO-46 (18) package.  Thermopile IR Sensors are used for non-contact, or infrared, surface temperature measuring. There are also a variety of filters available to help maximize performance in specific applications.



Check Distributor Stock buy



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • HVAC
  • Occupancy detection
  • Automotive

Features

  • Non-contact measurement
  • Wider surface area measurement
  • Small-size sensor package
  • Included ambient temperature (thermistor) sensor for compensation
  • High sensitivity
  • Fast response time
  • Low cost

Specifications

Thermopile Chip

Parameter Limit Min Limit Typ Limit Max Units Conditions
Chip Size   3.6 x 3.6   mm2
Diaphragm Size   2.6 x 2.6   mm2
Active Area   1.3 x 1.3   mm2
Internal Resistance 35 50 65 kΩ 25°C
Resistance T.C     0.12 %/°C
Responsivity 22 32 42 V/W 500K, 1 Hz
Responsivity T.C   -0.11   %/°C
Noise Voltage   30   nV rms R.M.S., 25°C
NEP   0.94   nW/Hz½ 500K, 1 Hz
Detectivity   1.38 E08   cmHz½/W 500K, 1 Hz
Time Constant   25   ms

Product Documents

English

Thermometrics Infrared (IR) Sensor | ZTP-315 Datasheet

  • Download

English

Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

  • Download

Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

  • ZTP-315
