NTC Thermistors | Epoxy Type

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65

    Epoxy

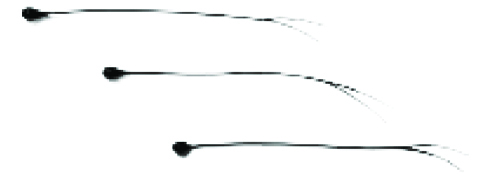

Thermometrics Interchangeable Epoxy Type NTC Thermistors 65 SeriesThermometrics Epoxy Type 65 NTC Interchangeable Thermistors are epoxy-coated interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F).



Check Distributor Stock



  • Applications
  • Features
  • Type MC65
  • Type MF65
  • Product Documents
  • Part Nos.

Applications

  • Suitable for temperature measurement, control and compensation

Features

  • Precision, solid state temperature sensor
  • Suitable for use over range of -40°C to 105°C (-40°F to 221°F)
  • High sensitivity greater than –4%/°C at 25°C (77°F)
  • High reliability and stability over interchangeable range
  • Heavy isomid insulated bifilar nickel lead wires (0.1 mm diameter)
  •

    Type MC65

    Type MC65 Specifications:
  • Interchangeability down to ±0.05°C (±0.09°F)
  • Special tight tolerances in the clinical range for medical applications
  • Resin-coated for good mechanical strength and resistance to solvents
  • Dissipation Constant 0.5 mW/°C (still air)
    4 mW/°C (stirred oil)
    Thermal Time Constant 8s (still air)
    0.5s (stirred oil)
    Maximum Power (25°C/75°F) 25 mW
    De-rated from 100% at 25°C (77°F) to 0% at 100°C (212°F)
    Resistance vs. Tolerance See datasheet.
    Options:
  • Other resistance values
  • Other tolerances or ranges
  • Other lead wires or lengths
  • Non-standard R vs T curves
  • Controlled dimensions
  • Type MF65

    Type MF65 Specifications:
  • Interchangeability down to ±0.10°C (±0.18°F)
  • Fluidized bed epoxy-coated for good mechanical strength and resistance to solvents
  • Dissipation Constant 0.5 mW/°C (still air)
    4 mW/°C (stirred oil)
    Thermal Time Constant 8s (still air)
    0.5s (stirred oil)
    Maximum Power (25°C/75°F) 25 mW
    De-rated from 100% at 25°C (77°F) to 0% at 100°C (212°F)
    Resistance vs. Tolerance See datasheet.
    Options:
  • Other resistance values
  • Other tolerances or ranges
  • Other lead wires or lengths
  • Non-standard R vs T curves
  • Controlled dimensions
  • Product Documents

    English

    Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65 -Datasheet

    • Download

    Thermometrics Application Spotlight | Predictive Thermometry - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

    • Download

    English

    Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

    • Download

    Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

    • Download

    English

    Thermometrics | Temperature Resistance Curves - Reference Guide

    • Download

    Temperature Sensor Solutions | Thermometrics - Brochure

    • Download

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    • MC65F323A
    • MC65F323B
    • MC65F323C
    • MC65F302A
    • MC65F302B
    • MC65F302C
    • MC65F502A
    • MC65F502B
    • MC65F502C
    • MC65Y103A
    • MC65Y103B
    • MC65Y103C
    • MC65H303A
    • MC65H303B
    • MC65H303C
    • MC65G503A
    • MC65G503B
    • MC65G503C
    • MC65Y104A
    • MC65Y104B
    • MC65Y104C
    • MC65G104A
    • MC65G104B
    • MC65G104C
    • MF65F302V
