NTC Thermistors

Thermometrics NTC Thermistors | Glass FP Series - Fastip Probe

    Glass

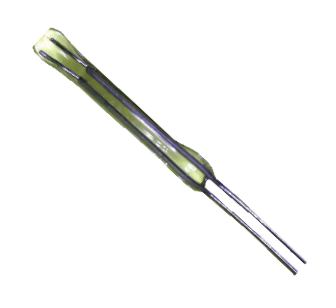

Thermometrics NTC Type Fastip Probe Thermistor FP07 FP Series

Thermometrics FP Series of Glass-Coated Fastip Probe NTC Thermistors consists of small diameter glass-coated thermistor beads hermetically sealed at the tips of shock resistant glass rods. The small bead thermistor has a very thin glass coating which allows for relatively flat frequency response for flow applications. As much of the bead as possible is exposed at the tip of the glass rod to provide the fastest response times. The units are rugged and unaffected by severe environmental exposures, including high density nuclear radiation. The FP Series of Fastip Thermoprobes are ideally suited for high speed measurement and control of fluid temperatures, fluid levels or flow. They offer the ease of handling associated with large glass probe thermistors, as well as ultra-fast response times of small glass-coated bead thermistors. These units exhibit relatively flat response to flow input from 200 Hz to 1000 Hz.



Check Distributor Stock



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Sub-sea monitoring
  • High speed fluid temperature measurement and control
  • Industrial applications
  •

    Features

  • Ultra-fast response times
  • Unaffected by severe environmental exposures
  • Relatively flat frequency response
  • Ease of handling
  •

    Specifications

    Thermal & Electrical Properties:
     Body Dimensions  Maximum Diameter 0.085 in (2.2 mm)
    Body Length 0.5 in (12.7 mm)
    Lead Wires    Nominal Diameter  0.012 in (0.30 mm)
    Lead Length 0.875 in (22 mm)
    Lead Material Tinned dumet
     Thermal Time Constant  Still Air @ 25°C (77°F) 0.10 sec
    Plunge into Water 7 msec
    Dissipation Constant  Still Air @ 25°C (77°F) 0.05 mW/°C
    Still Water @ 25°C (77°F) 0.25 mW/°C
    Power Rating (In Air)   Maximum Power Rating  0.006 Watts



    Product Documents

    English

    Thermometrics NTC Thermistors | Glass-Coated Type FP07 Fastip Probe Thermistor Datasheet

    • Download

    English

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 1) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | NTC Sensor Linearization

    • Download

    Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 2) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 3) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistors FAQ - Application Spotlight

    • Download

    Thermometrics Product Spotlight | Digital Temperature Sensors versus NTC Thermistors - Product Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 5) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 4) - Application Spotlight

    • Download

    English

    Thermometrics | Temperature Resistance Curves - Reference Guide

    • Download

    Temperature Sensor Solutions | Thermometrics - Brochure

    • Download

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    Part numbers are described in the datasheet.
