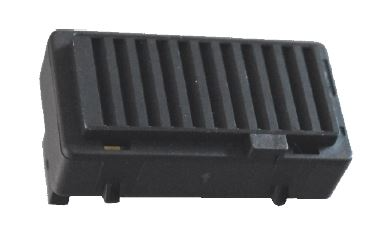

Telaire T6743 | Internal CO2 Sensor for Automotive Applications

    Carbon Dioxide (CO2) Sensor Modules

Telaire Internal CO2 Sensor for Automotive Applications

The Telaire T6743 Internal CO2 Sensor is a nondispersive infrared (NDIR) CO2 sensor that implements a single channel diffusion sampling method for automotive HVAC applications, including automatic fresh air control and safety sensing for CO2 refrigerants.

Along with the patented ABC Logic™ lifetime calibration warranty, its low power consumption, compact design and simple product integration, make this an affordable gas sensing solution. All units are factory-calibrated to measure CO2 concentration levels up to 5,000 ppm.



  • For safety - Measure and control in-cabin CO2 levels to prevent driver drowsiness.
  • For energy savings - Reduce variations in heating and cooling in-cabin through demand control ventilation.





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Automotive HVAC - In-cabin air quality and comfort control

Features

  • ABC Logic™ - Lifetime calibration warranty
  • Lin 2.0 output
  • Low power consumption
  • Compact design
  • Versatile interface for simple product integration
  • Factory-calibrated to measure CO2 concentration levels up to 5,000 ppm
  • Adjustable firmware variables
  • Custom packaging options
  • Subject to commercial consideration customization of firmware, connector and enclosure is possible

Specifications

ABC Logic Automatic Background Calibration – The algorithm that uses ambient air concentrations to adjust the sensor and compensate sensor long-term drift.
Adjustment cycle period is 12 – 192 hours of operation in active mode. Practical adjustment cycle depends on operating conditions.
Measurement Range Air Quality Control: 400 – 5,000 ppm CO2
Safety Alarm for Air Quality Control and CO2: 400 – 40,000 ppm CO2
Output Range 0 – 65,000 ppm CO2
Measurement Period Active Mode: 5 seconds
Low Power Mode: 5 minutes
Sleep Mode: 12 hours
Timing of these modes can be configured per customer requirements.
Resolution and Repeatability Internal Sensor Resolution: 1 ppm
Repeatability: 30 ppm at 1000 ppm (Typical)
Accuracy in Active Mode Range: 400 ppm to 5,000 ppm
±200 ppm or 10% of the reading, whichever is greater @ 0 to 50°C
Range: 5,000 ppm to 40,000 ppm (4%)
10% of the reading @ 0 to 50°C
Temperature Dependence Additional 0.5% of reading per °C or 5 PPM/C, whichever is greater outside the range 0 to 50°C
Pressure Dependence 0.135% of the reading per mm Hg
Response Time (90% of Step Change) Active Mode: <40 seconds, dependent on test regime (Typical)
Warm-Up Time First measurements in:
< 5 sec after power-up
< 2 minutes maximum accuracy in Active Mode
Total Lifetime 130,000 hours, limited by microcontroller flash retention specification
Operational Lifetime In Active Mode: 45,000 hours
Relative Humidity 0-95% non-condensing

 *Please see product datasheet for more details and specifications.

Product Documents

English

Telaire | Internal CO2 Sensor for Automotive Applications - Datasheet

  • Download

Telaire Application Spotlight | Automotive CO2 In-Cabin Sensing for Energy Reduction - Application Spotlight

  • Download

Telaire Product Spotlight | T6743 CO2 Sensor for Automotive OEM Applications

  • Download

English

Ventilation Controls Save Energy and Reduce Emissions in Commercial Spaces - Telaire Application Note

  • Download

Demand Control Ventilation Q&A - Telaire Application Note

  • Download

Using CO2 For Zone Ventilation Control In Buildings | Answers to Common Questions & Objections - Telaire Application Note

  • Download

Common CO2 Wiring Issues - Telaire Application Note

  • Download

CO2-based Ventilation Control | Where Required and Recommended - Telaire Application Note

  • Download

CO2 Sensor Sniffs Out Human Smugglers - Telaire Application Note

  • Download

Carbon Dioxide (CO2) and Combustion Sensing - Telaire Application Note

  • Download

ABCLogic™ Self Calibration Feature - Telaire Application Note

  • Download

English

Delivering Better Indoor Air Quality and Energy Efficiency - CO2, Humidity and Temperature Products | Telaire - Brochure

  • Download

Air Quality Sensors - OEM Sensor Components for Air Quality and Environmental Control | Telaire - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

Available Models Sampling Method Range Feature
T6743 Diffusion 0-40,000 ppm PCB Only
T6743-E Diffusion 0-40,000 ppm Sensor with Enclosure
