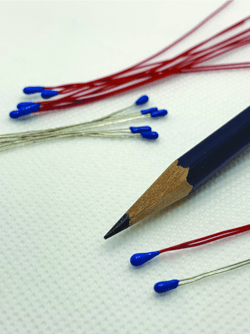

Type 95 Series NTC Thermistors for Medical

Thermometrics Type 95 Series NTC Thermistors are precision, solid state temperature sensors, providing high reliability and  stability over an interchangeable range.

Features

• Interchangeable NTC Chip Thermistor, which produces a tight interchangeable
• tolerance against our published resistance versus temperature curves.
• These thermistors exhibit excellent stability across the interchangeable range.
• Resin coating for mechanical strength and resistance to solvents.
• Flexible bare leads for the DC and EC style, and fully insulated leads for the TK style.

Applications

• General patient probes
• Blood (fluid) analyzers
• Cleaning / disinfection
• Oxygenators
• General equipment
• Air temperature

Specifications

• Max OD: 0.095” (2.4mm)
•  Resistance at 25°C: 2kΩ to 100kΩ
  Featuring: 2252Ω (400 series), 10kΩ
  (25/85 Beta of 3977K, 3969K, and 3690K)
• Interchangeability
  "U”: ±0.2°C from -20°C to 50°C (EC)
  “V”: ±0.1°C from 0°C to 70°C (DC, EC, and TK)
  “W”: ±0.2°C from 0°C to 70°C (DC, EC, and TK)
  “Z”: ±0.2°C from 0°C to 100°C (DC and EC)

Product Information Ordering

Amphenol medical sensors can be custom designed to meet the exact specifications and demands of application. Speak with one of our engineers today about your sensor technology needs:
