Temperature Sensor Assemblies


Thermometrics Sensor Assemblies | A-1325/A-1326 Intake Air Temperature Sensor (AIT)

    Previous Page
Thermometrics Intake Air Temperature Sensor (AIT) A-1325/A-1326

Thermometrics A-1325/A-1326 Temperature Sensor monitors the temperature of the incoming intake airflow for an engine and provides a signal output that is proportional to air temperature. This signal can be used as an input to a temperature gauge, or to provide input to an Engine Control Unit (ECU). The ECU then uses this information to adjust fuel delivery and optimize the air-to-fuel ratio to produce the most efficient combustion.

Read more ...

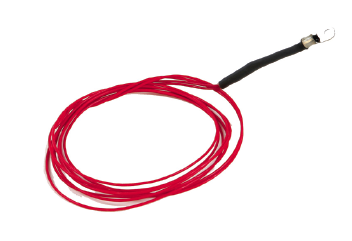

Thermometrics Sensor Assemblies | A-1589 Battery Pack Temperature Sensor

    Previous Page
Amphenol Thermometrics Battery Pack Temperature Sensor

Thermometrics Battery Pack Temperature Sensor is a ring terminal temperature sensor that measures surface temperature. It is important to monitor the temperature on hybrid batteries for overcharging protection, as well as to optimize battery performance.

Read more ...

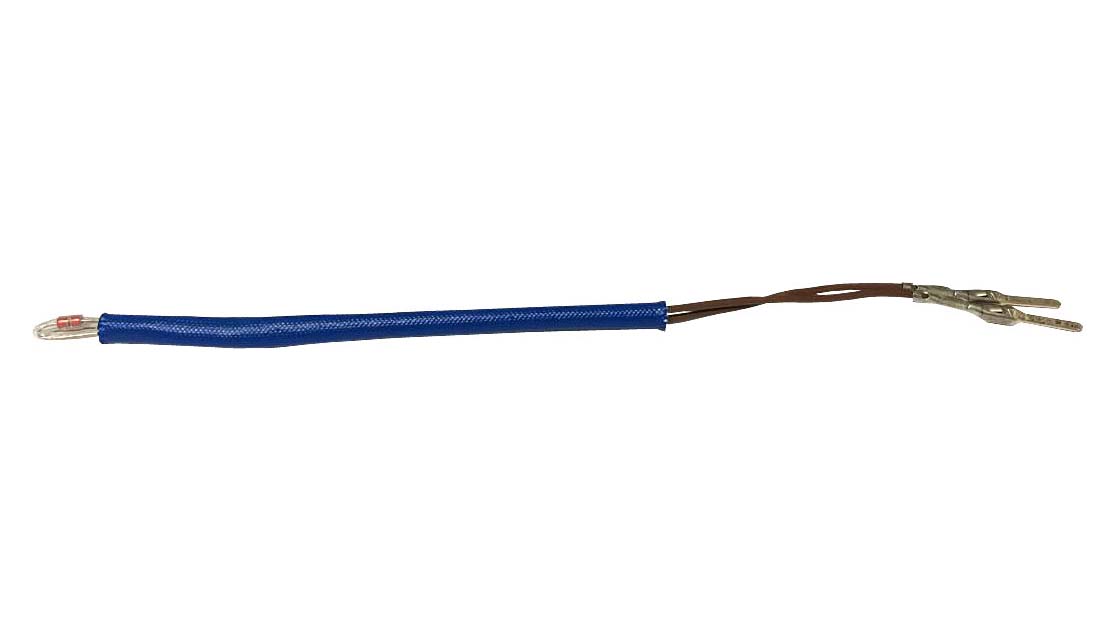

Thermometrics Sensor Assemblies | A-1737 Motor Coil Temperature Sensor

    Previous Page
Amphenol Thermometrics Motor Coil Temperature Sensor A-1737

Thermometrics A-1737 Motor Coil Temperature Sensor provides temperature measurement of the motor coil to detect increases in current that could lead to failures, as well as to monitor temperature of motor windings to warn of over-temperature conditions.

Read more ...

Thermometrics Sensor Assemblies | A-1743 Evaporator Temperature Sensor

    Previous Page
Amphenol Thermometrics Evaporator Temperature Sensor

Thermometrics Evaporator Temperature Sensor is used to measure evaporator core temperature. An evaporator cools the refrigerant in the HVAC system. Since the evaporator core operates at temperatures very close to 0°C, it is important to have an accurate and robust thermistor to measure its temperature to prevent the core from freezing.

Read more ...

Thermometrics Sensor Assemblies | A-1744 Discharge Air Temperature Sensor (DAT)

    Previous Page
Thermometrics Discharge Air Temperature Sensor (DAT)

Thermometrics Discharge Air Temperature Sensor (DAT) is used to measure the temperature of the air that is emitted from a vehicle's air ducts.

Read more ...

Thermometrics Sensor Assemblies | A-1762 Fuel Temperature Sensor (FTS)

    Previous Page
Amphenol Thermometrics Fuel Temperature Sensor

Thermometrics Fuel Temperature Sensor (FTS) is designed to measure the temperature of a vehicle's fuel and relay this information to the engine control unit, so that it can optimize the air-to-fuel mix ratio, depending on what the fuel temperature is with respect to the intake air temperature. The sensor enables the vehicle to run at maximum efficiency based on temperature.

Read more ...

Thermometrics Sensor Assemblies | A-1883 Transmission Fluid Temperature Sensor (TFT)

    Previous Page
Amphenol Thermometrics Transmission Fluid Temperature Sensor (TFT)

Thermometrics Transmission Fluid Temperature Sensor (TFT) measures the temperature of transmission fluid. It provides input to the control module to modify shift patterns for smoother shifting in automatic transmissions, and also provides over-temperature protection by locking the torque convertor.

Read more ...

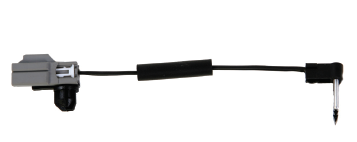

Thermometrics Sensor Assemblies | A-1931 Evaporator Core Temperature Sensor

    Previous Page
Amphenol Thermometrics Evaporator Core Temperature Sensor

Thermometrics Evaporator Core Temperature Sensor measures evaporator core temperature in a vehicle's HVAC system so that it doesn’t freeze over, preventing a costly repair. The ultra fast response time aids in the HVAC system efficiency by enabling the evaporator core to operate closer to 0°C without the risk of a freeze over condition.

Read more ...

Thermometrics Sensor Assemblies | A-1996 HVAC Duct Temperature Sensor

    Previous Page
Amphenol Thermometrics HVAC Duct Temperature Sensor A-1996

Thermometrics A-1996 HVAC Duct Temperature Sensor offers OEM solutions for measuring the temperature of air in ventilation ducts. The temperature reading is wired to a control module, where the system compares the temperature reading to a temperature set-point and adjusts outputs accordingly.

Read more ...

Thermometrics Sensor Assemblies | A990 Interchangeable NTC Thermistor Sub-Assembly

    Previous Page
Amphenol Thermometrics NTC Interchangeable Thermistor Sub-Assemblies Type A990 Series

Thermometrics A990 Series of Interchangeable NTC Thermistor Sub-assemblies consist of matched pairs of small, glass encapsulated thermistor beads which are connected in either series or parallel circuit configurations. These sub-assemblies are available in a variety of styles which enable them to be used in measuring the temperature of liquids or solids or to be encapsulated into larger housings such as hypodermic needles or closed end sheaths. The sub-assemblies provide interchangeable resistance-temperataure characterisitics in extremely small, fast response packagges, which are easy to handle.

Read more ...

Thermometrics Sensor Assemblies | AB6 NTC Thermistor Assembly

    Previous Page
Amphenol Thermometrics NTC Type Thermobead Chip in Glass Thermistor Assemblies AB6 Series

Thermometrics NTC Type AB6 Series Thermistor Assemblies consist of small thermobeads and GCs (chip-in-glass) that are welded to insulated extension leads. Thermobead and GC assemblies are used where a small thermistor must be further connected to longer leads, and for applications requiring fast response measurements in confined spaces.

Read more ...

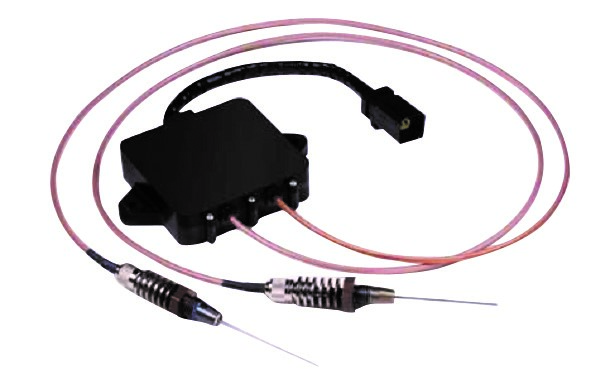

Thermometrics Sensor Assemblies | Accusolve Diesel Particulate Filter (DPF) Soot Sensor

    Previous Page
Amphenol Thermometrics Accusolve Diesel Particulate Filter Soot Sensor DPF

Thermometrics Accusolve Diesel Particulate Filter (DPF) Soot Sensor utilizes radio frequency technology to enable accurate measurement of accumulated soot in the DPF, providing real-time soot loading data and real time closed loop control of the DPF regeneration process.

Read more ...

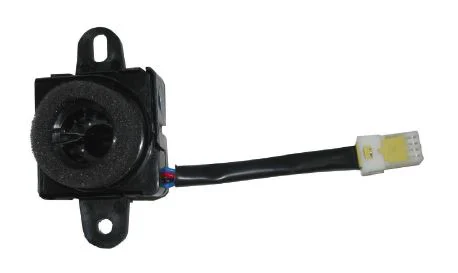

Thermometrics Sensor Assemblies | Active Incar Temperature Sensor

    Previous Page
Amphenol Thermometrics Active In Car Temperature Sensor

Thermometrics Active Incar Temperature Sensor (AIT) indicates in-cabin temperature measurement for vehicles that have an automated temperature control system to provide better cabin comfort and improved efficiency of the vehicle's temperature control system.

Read more ...

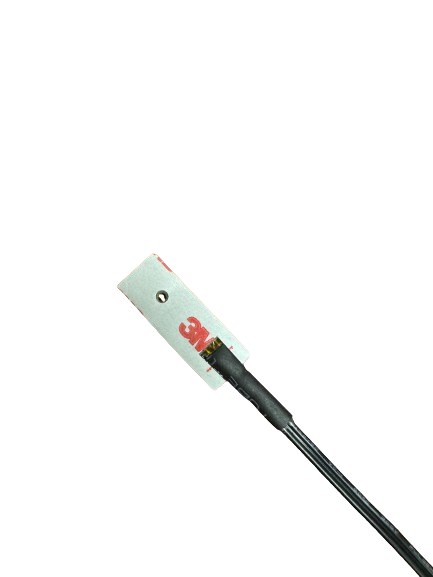

Thermometrics Sensor Assemblies | Adhesive Mounted Surface Sensors

    Previous Page
Amphenol Thermometrics Adhesive Surface Sensors

Thermometrics Adhesive Mounted Surface Sensors feature a surface mount cup for use as skin temperature sensors or on flat surfaces. They consist of small bead, disc or thermistor types <0.100" OD with shielded, jacketed or coaxial cable extension leads, as well as a maximum temperature rating of 140°F to 500°F (60°C to 260°C).

Read more ...

Thermometrics Sensor Assemblies | Ambient Air Temperature Sensor

    Previous Page
Amphenol Thermometrics Ambient Air Temperature Sensor

Thermometrics Ambient Air Temperature Sensor measures the temperature outside the passenger compartment and is usually mounted inside or near the front bumper.

Read more ...

Thermometrics Sensor Assemblies | Appliance Temperature Probe

    Previous Page
Amphenol Thermometrics Appliance Temperature Probe, Mid-Temperature Range Probe

Thermometrics Appliance Temperature Probe is a mid-temperature range probe that works in a variety of temperature applications in the appliance and industrial segment.

Read more ...

Thermometrics Sensor Assemblies | BAF147 Water Detection Sensor

    Previous Page
Thermometrics Water Detection Sensor

Thermometrics Water Detection Sensor detects moisture leakage in Electric Vehicle (EV) battery pack systems to warn the driver of dangerious driving conditions.

Read more ...

Thermometrics Sensor Assemblies | Biomedical Chip Thermistors MA Series

    Previous Page
Thermometrics Biomedical Chip Thermistors MA Series

Thermometrics Biomedical Chip Thermistor Assemblies are designed for use in applications involving both intermittent and continuous patient temperature monitoring. Repeatability and fast response are essential, not only for the intermittent temperature requirements associated with oral and rectal fever measurements, but also for the continuous monitoring often necessary during induced-hypothermia and general anesthesia, or when employed in the care of infants and premature babies. Intensive care units, along with recovery rooms, have also adopted patient temperature as part of their vital sign monitoring procedures. Temperature monitoring for skin surface, tympanic, esophageal, foley catheters, and biofeedback applications has also improved due to the high stability and tight interchangeable tolerances designed into each Thermometrics’ Biomedical Sensor Assembly.

Read more ...

Thermometrics Sensor Assemblies | Cable Probe Temperature Sensor

    Previous Page
Amphenol Thermometrics Cable Probe Temperature Sensors

Thermometrics Cable Probe Temperature Sensors are designed for industrial HVACR applications, typically strapped directly to the measurement surface or positioned in a ‘dry well.'

Read more ...

Thermometrics Sensor Assemblies | Clip-On Pipe and Surface Sensor - Type JW/JC

    Previous Page
Thermometrics NTC Type Waterproof Clip-On Pipe and Surface Sensor Type JW/JC

Thermometrics Type JW/JC of Waterproof Clip-On Pipe and Surface Sensors are NTC or PTC type chip thermistors on a ceramic/metal shoe assembly sealed in a polymer housing and provided with flexible twin cable connections. Suitable for use in conditions of high condensation and occasional immersion in water. Typical applications include gas boiler control, domestic water systems, air conditioners, radiator inlet-outlet, electric showers and vending machines.

Read more ...

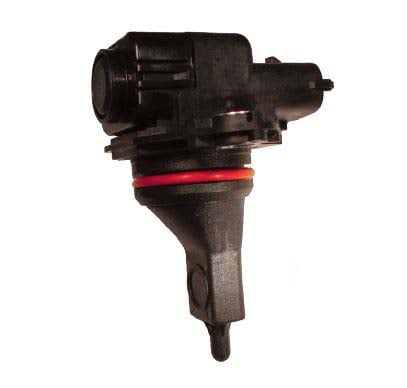

Thermometrics Sensor Assemblies | Combination Sensor

    Previous Page
Thermometrics Combination Sensor - Relative Humidity, Temperature, Manifold Pressure and Barometric Pressure

Thermometrics Combination Sensor is a smart combination intake manifold sensor capable of providing up to five measurements, including relative humidity, temperature, manifold pressure and barmetric pressure ...

Read more ...

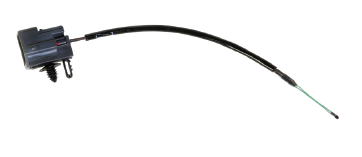

Thermometrics Sensor Assemblies | Cylinder Head Temperature Sensor (CHT)

    Previous Page
Amphenol Thermometrics Cylinder Head Temperature Sensor

Thermometrics Cylinder Head Temperature Sensor is designed to take the place of one of the cylinder head bolts on a diesel engine. The sensor’s purpose is to measure the cylinder head temperature and to signal the vehicle’s operator if an engine overheats.

Read more ...

Thermometrics Sensor Assemblies | Duct Sensor

    Previous Page
Amphenol Thermometrics Duct Sensor

Thermometrics Duct Sensor is used to measure the temperature of the air that is emitted from the air ducts in
automobiles.

Read more ...

Thermometrics Sensor Assemblies | Duct Temperature Sensor

    Previous Page
Amphenol Thermometrics Duct Temperature Sensor

The Thermometrics Duct Temperature Sensor indicates the ambient temperature of the automatic air conditioner system in the passenger car.

Read more ...

Thermometrics Sensor Assemblies | E-stat Controller

    Previous Page
Amphenol Thermometrics E-stat Controller

Thermometrics E-stat Controller is used in automobile air conditions to prevent the evaporator core from freezing.

Read more ...

Thermometrics Sensor Assemblies | Exhaust Gas High Temperature Sensor

    Previous Page
Amphenol Thermometrics Exhaust Gas High Temperature Sensor EGR

Thermometrics Exhaust Gas High Temperature Sensor monitors the temperature before and after SCR system in vehicle engines as part of the engine control strategy. It is designed for fast response, optimized for thermal dissipation and suitable for high vibration and corrosive environments.

Read more ...

Thermometrics Sensor Assemblies | Exhaust Gas Recycle Temperature Sensor (EGR)

    Previous Page
Amphenol Thermometrics Exhaust Gas Recycle Temperature Sensor EGR

Thermometrics Exhaust Gas Recycle Temperature Sensor (EGR) is used to monitor the temperature at several locations in a diesel engine, as part of the engine control strategy. Available in both 150°C and 300°C temperature versions, the high temperature sensor is used in the exhaust gas, and the low temperature sensor is used in the intake air stream. Both are designed for fast response, optimized for thermal dissipation and suitable for high vibration and corrosive environments.

Read more ...

Thermometrics Sensor Assemblies | Fast Response NTC Thermistor Assembly JD Series

    Previous Page
Amphenol Thermometrics NTC Type Fast Response Sensor JD Series

Thermometrics NTC Type JD Series of Fast Response Sensors are thermistor assemblies in a metal housing with flying wires. Typical applications include electric showers and other water appliances/systems where fast, accurate control is required.

Read more ...

Thermometrics Sensor Assemblies | GE-1495 Water Temperature Sensor (WTS)

    Previous Page
Thermometrics Water Temperature Sensor (WTS)

Thermometrics Water Temperature Sensor (WTS) monitors the temperature of the coolant that is being pumped around the engine block to cool the engine to notify the driver of the vehicle if the engine starts to overheat. The goal is to relay an over-temperature engine temperature to the driver, so that the vehicle can be stopped and the engine switched off before the heat causes any permanent damage to the engine.

Read more ...

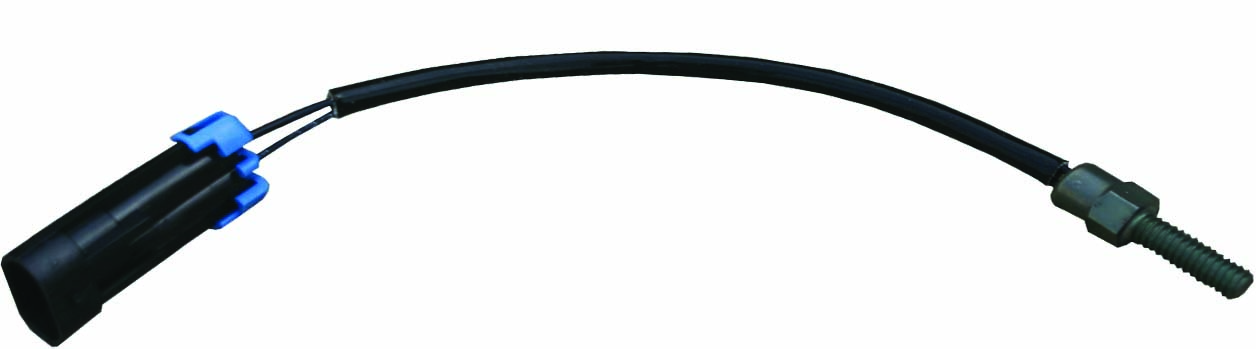

Thermometrics Sensor Assemblies | GE-1571 Stainless Steel Sensor with Flying Leads

    Previous Page
Thermometrics Stainless Steel Sensor with Flying Leads GE-1571

Thermometrics GE-1571 Stainless Steel Sensor with Flying Leads is designed to survive the vibration rigors of automotive, small gas engine, motorcycle and outboard engine applications. In addition to its ruggedness, this sensor offers fast response with a temperature rating of –40°C to 230°C.

Read more ...

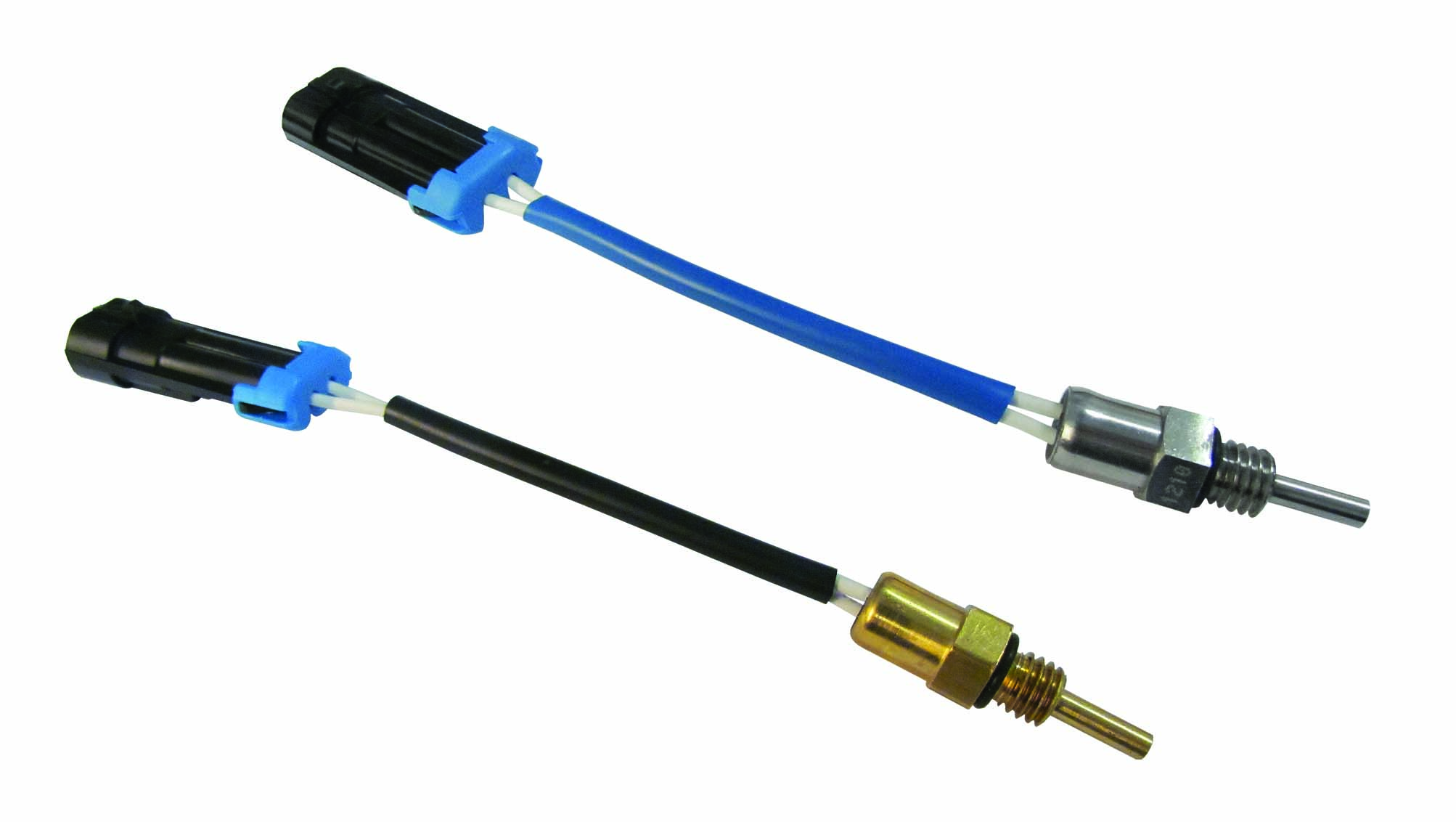

Thermometrics Sensor Assemblies | GE-1711 / GE-1797 Engine Temperature Sensor (ETS)

    Previous Page
Amphenol Thermometrics Engine Temperature Sensor (ETS)

Thermometrics GE-1711 / GE-1797 Engine Temperature Sensor (ETS) monitors the temperature of the coolant, oil or fuel being used in an engine.

Read more ...

Thermometrics Sensor Assemblies | GE-1763 Oil Temperature Sensor (OTS)

    Previous Page
Amphenol Thermometrics Oil Temperature Sensor OTS

Thermometrics Oil Temperature Sensor (OTS) monitors the temperature of the engine oil in a vehicle and displays this measurement to the vehicle’s occupants. If a vehicle operates at too high a temperature, the engine can be in danger of damage.

Read more ...

Thermometrics Sensor Assemblies | GE-1856 Intake Air Temperature Sensor (IAT)

    Previous Page
Thermometrics Intake Air Temperature Sensor (IAT) GE-1856

Thermometrics GE-1856 Intake Air Temperature Sensor (IAT) monitors the temperature of the incoming intake air for an engine and provides a signal output that is proportional to air temperature. This signal can be used as an input to provide a signal to an Engine Control Unit (ECU), which uses this information to adjust fuel delivery and optimize the air-to-fuel ratio to produce the most efficient combustion. GE-1856 is also suitable for air duct temperature measurement in non-condensing HVAC applications.

Read more ...

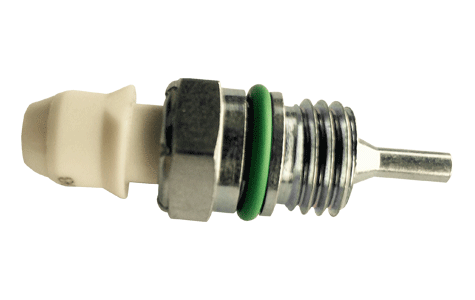

Thermometrics Sensor Assemblies | GE-1920 HVAC Refrigerant Temperature Sensor

    Previous Page
Amphenol Thermometrics GE-1920 Refrigeration Temperature Sensor

Thermometrics GE-1920 HVAC Refrigerant Temperature Sensor measures the refrigerant temperature both at the high pressure side and low pressure side of the line. The control module uses this information to maximize the performance of the HVAC system.

Read more ...

Thermometrics Sensor Assemblies | GE-1923 Outside Air Temperature Sensor (OAT)

    Previous Page
Thermometrics Outside Air Temperature Sensor (OAT) GE-1923

Thermometrics GE-1923 Outside Air Temperature Sensor (OAT) measures the temperature outside the passenger compartment of a vehicle and relays the outside air temperature to the controller of the automatic HVAC system. The controller uses this temperature to assist in controlling the interior temperature of the vehicle. The sensor also provides the vehicle occupants with temperature readings from outside the car, which is particularly useful when driving in near freezing or freezing conditions.

Read more ...

Thermometrics Sensor Assemblies | GE-2133 General Fluid Temperature Sensor

    Previous Page
Thermometrics General Fluid Temperature Sensor GE-2133

new Thermometrics GE-2133 Series of General Fluid Temperature Sensors measures and monitors the temperature of a variety of fluids. The spring clip design secures the sensor in place and provides a quick means for installation and removal.

Read more ...

Thermometrics Sensor Assemblies | GE-2142 HVAC Duct Temperature Sensor

    Previous Page
Thermometrics HVAC Duct Temperature Sensor GE-2142

new Thermometrics GE-2142 HVAC Duct Temperature Sensors are OEM solutions for measuring the temperature of air in ventilation ducts. These sensors provide a signal output that is proportional to the duct air temperature. This signal can be used as an input to a controller that interprets the signal and adjusts outputs accordingly.

Read more ...

Thermometrics Sensor Assemblies | Inline Flow-Through Fluid Temperature Sensor

    Previous Page
Thermometrics Inline Flow-Through Fluid Temperature Sensor

Thermometrics Inline Flow-Through Temperature Sensors monitor the temperature of a fluid that passes through it. A system control module receives this temperature reading and uses a control loop to control the overall system temperature. This could be engine temperature, heater temperature, industrial supply temperature, etc.

Read more ...

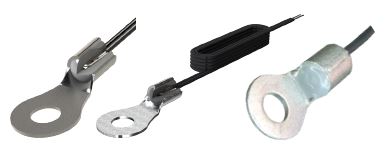

Thermometrics Sensor Assemblies | JRI Series - Noise Immune Ring Terminal Temperature Sensor

    Previous Page
Thermometrics JRI Series - Noise Immune Ring Terminal Temperature Sensor

Thermometrics JRI Series of Noise Immune Ring Terminal Temperature Sensors consists of an NTC chip thermistor mounted in an eyelet tag for surface temperature measurement with a novel radio frequency (RF) decoupling function.

Read more ...

Thermometrics Sensor Assemblies | JS6780 Active Incar Sensor

    Previous Page
Thermometrics Active Incar Sensor

Thermometrics Active Incar Sensor indicates temperature in the cabin of passenger cars. Since it uses a fan to continuously draw air past the thermistor for an accurate temperature reading, it requires no venturi tube.

Read more ...

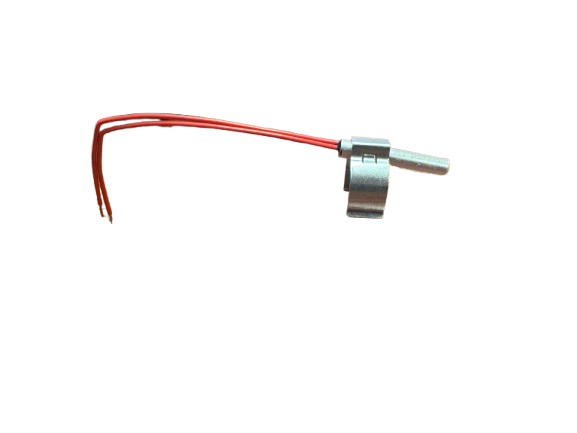

Thermometrics Sensor Assemblies | JS8741 Integrated Pipe Clip Surface Temperature Sensor

    Previous Page
Amphenol Thermometrics JS8741 Integrated Pipe Clip Surface Temperature Sensor

Thermometrics JS8741 Integrated Pipe Clip Surface Temperature Sensor monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Read more ...

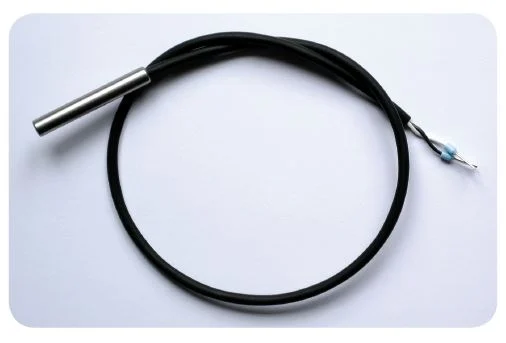

Thermometrics Sensor Assemblies | JS8746 Harsh Environment Temperature Sensor

    Previous Page
Thermometrics JS8746 Harsh Environment Temperature Sensor

new Thermometrics JS8746 Harsh Environment Temperature Sensor has been designed to address all aspects of temperature measurement for HVAC control systems in the container-ship market, in addition to industrial applications, such as compresors, condensing units, heat pumps, air conditioning. Employing materials and build standards that enhance the sensor’s ability to withstand water ingression and degradation by the marine environment, the sensor meets statutory requirements for temperature measurement and performance expectations.

Read more ...

Thermometrics Sensor Assemblies | JS8845 Integrated Pipe Clip Surface Temperature Sensor

    Previous Page
Thermometrics JS8845 Integrated Pipe Clip Surface Temperature Sensor

new Thermometrics JS8845 Integrated Pipe Clip Surface Temperature Sensor is a clip-on temperature sensor that monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Read more ...

Thermometrics Sensor Assemblies | Meat Probe Sensor

    Previous Page
Amphenol Thermometrics Meat Probe Sensor

Thermometrics Meat Probe Sensors are used to measure the temperature of cooking foods. Suitable for home appliances and microwave ovens.

Read more ...

Thermometrics Sensor Assemblies | Mid-Range Temperature Probe

    Previous Page
Amphenol Thermometrics Mid-Temperature Range Probe

The Thermometrics Mid-Range Temperature Probe works in a variety of temperature applications in the appliance and industrial segment.

Read more ...

Thermometrics Sensor Assemblies | Oven Sensor JB Series

    Previous Page
Amphenol Thermometrics NTC Type JB Thermometrics Oven Sensor

Thermometrics JB Series of NTC Type Oven Sensors are glass-encapsulated thermistors housed in a stainless steel probe body with PTFE leadout wires, terminated with a connector assembly. Typical applications include domestic ovens and combination microwaves.

Read more ...

Thermometrics Sensor Assemblies | Self-Adhering Surface Temperature Sensor

    Previous Page
Amphenol Thermometrics Self-Adhering Surface Temperature Sensors HVACR

Thermometrics Self-Adhering Surface Temperature Sensors are designed for industrial HVACR applications, typically for placement on the external wall of a water tank or boiler reservoirs. They are also suitable for reservoir tanks working in conjunction with solar panel water heating systems.

Read more ...

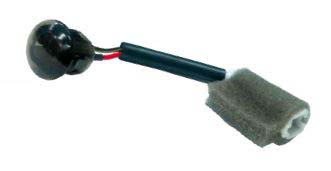

Thermometrics Sensor Assemblies | Single Solar Sensor

    Previous Page
Thermometrics Single Solar Sensor

Thermometrics Single Solar Sensors are mounted on a vehicle's IP panel near the front window and use the amount of outside sunlight entering the vehicle to assist in controlling the HVAC system. The single solar sensor has one photo diode cell inside, and is used in the independent type ATC, by sensing the amount of light left to right via angle light activating filters.

Read more ...

Thermometrics Sensor Assemblies | SUF005A001 Dual Solar Sensor

    Previous Page
Amphenol Thermometrics Dual Solar Sensor

Thermometrics Dual Solar Sensor uses two photo diode cells to measure the intensity of the light that enters into the cabin of a vehicle.

Read more ...

Thermometrics Sensor Assemblies | Type FL Low Profile NTC Temperature Sensor

    Previous Page
Thermometrics Low Profile NTC Temperature Sensor Type FL

Thermometrics Type FL Low Profile NTC Temperature Sensor consists of an NTC chip thermistor enclosed in a flat flexible circuit (FFC) with a thin-film protective coating. With its low profile (1.0 mm max thickness) and contour-conforming flexibility, this sensor is ideal for tight applications.

Read more ...

Thermometrics Sensor Assemblies | Type JI/JIC Waterproof IP68 Temperature Sensor

    Previous Page
Amphenol Thermometrics Waterproof IP68 Temperature Sensor NTC Thermistor

Thermometrics Waterproof IP68 Temperature Sensors include Types JI and JIC NTC Thermistors. Both types are molded onto a flexible circular cable with the option of a stainless steel housing. Wide application range. Additional options for resistance-temperature characteristics, wire lengths and housing lengths.

Read more ...

Thermometrics Sensor Assemblies | Type JR NTC Chip Thermistor in Eyelet Tag

    Previous Page
Amphenol Thermometrics Type JR Chip NTC Thermistor in Eyelet Tag

Thermometrics Type JR NTC Chip Thermistors in Eyelet Tag are chip thermistors with insulated flexible wires and housed in an eyelet tag. They are suitable for surface temperature measurement. Typical applications include semi-conductor heatsinks and enclosure panels.

Read more ...

Thermometrics Sensor Assemblies | WTF083B001-02A0 Coolant Temperature Sensor (CTS)

    Previous Page
Amphenol Thermometrics Coolant Temperature Sensors (CTS)

Thermometrics Coolant Temperature Sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module of EV/PHEVs. If the battery module starts to overheat, the Coolant Temperature Sensor relays a signal to the Battery Management System (BMS). The BMS uses this information to prevent battery packs from any damage and maximize the performance.

Read more ...

Products Menu

  • Temperature Sensors

    Temperature Sensors

  • Pressure Sensors

    Pressure Sensors

  • CO2, Humidity & Dust Sensors

    CO2, Humidity & Dust Sensors

  • Moisture Meters

    Moisture Meters

  • Thermal Validation & Monitoring

    Thermal Validation & Monitoring

spotlight

Temperature Sensor Solutions

spotlight

Temperature Resistance Curves



Markets Menu

automotive Transportation

industrialIndustrial

medicalMedical

pharmaceuticalPharmaceutical



Industry Leaders for Over 75 Years

Offering industry leading domain expertise, rapid customization, world-class manufacturing capability and lasting customer relationships to deliver the greatest value in cost of ownership to our customers.

facebookFollow us on Facebook

googleFollow us on YouTube

linked inFollow us on LinkedIn

  • Home
  • Products
  • Markets
  • Literature
  • Company
  • Contact

At Amphenol-ASTG, we make Quality, Safety and Environmental Protection a top priority. We believe that making sustainable choices in the way we conduct our business creates short-term and long-term value for our stakeholders. We do not create long-term value by merely complying with regulations, but we go beyond compliance to find ways to green our operations and our products to ensure continuity of the material and human resources that we need to operate the business.

Copyright ©  Amphenol Advanced Sensors. All rights reserved.

Sitemap

Privacy Policy

Terms of Use
